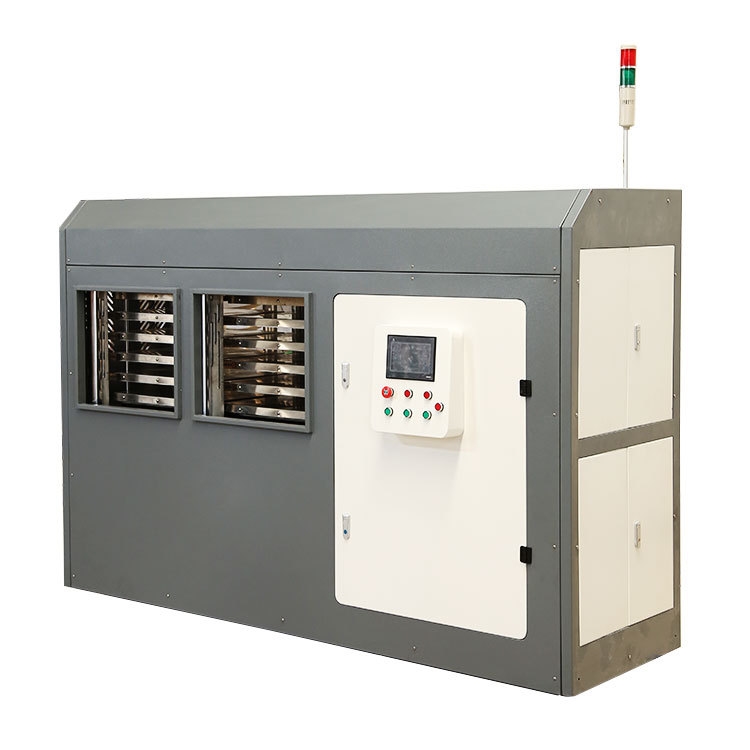

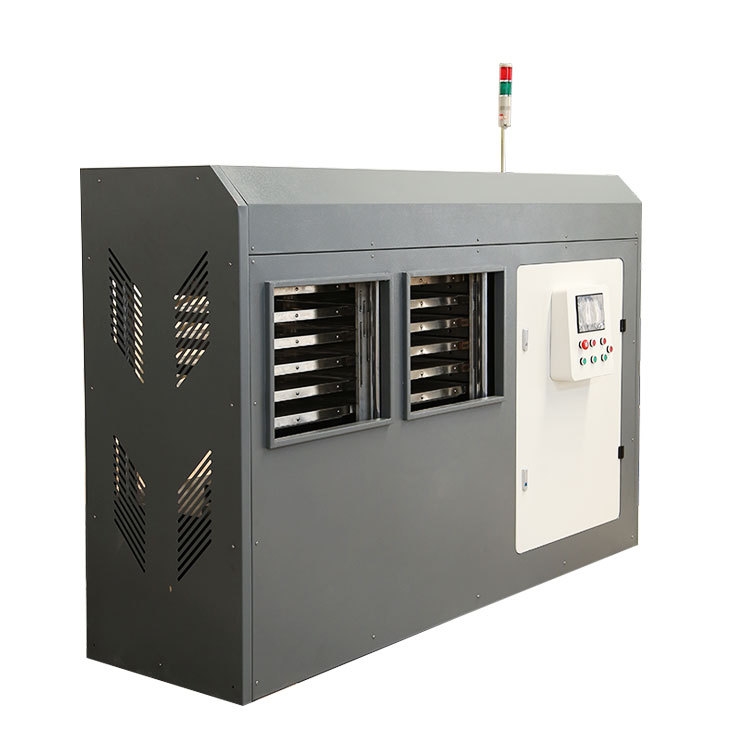

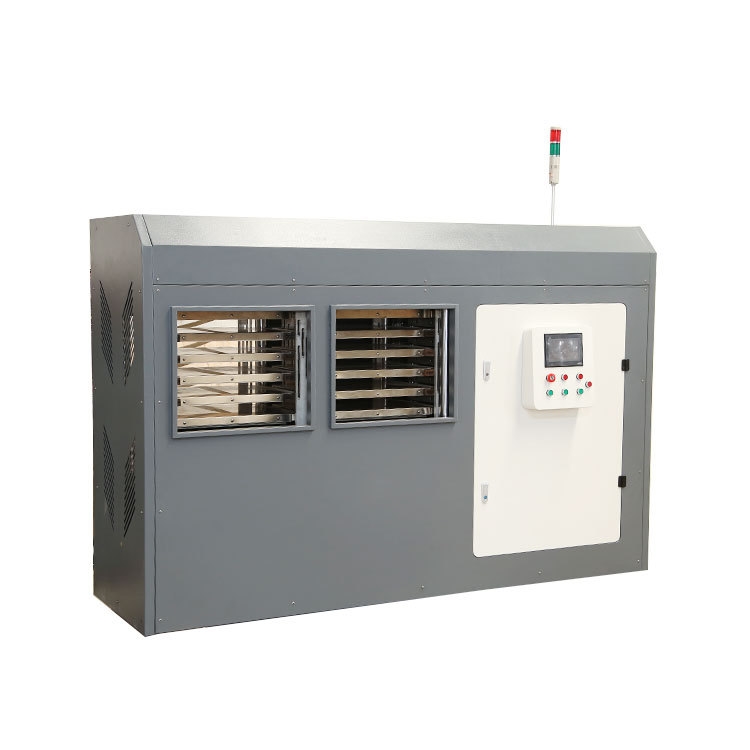

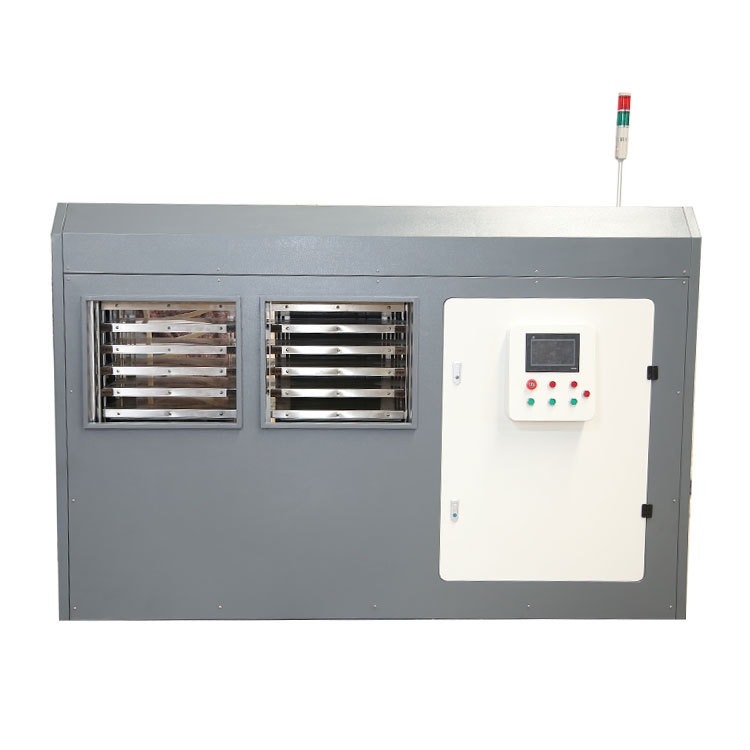

ICID smart card laminator

The machine breaks through the traditional design, realizes automatic material conveying instead of manual conveying, and realizes safe and efficient work.

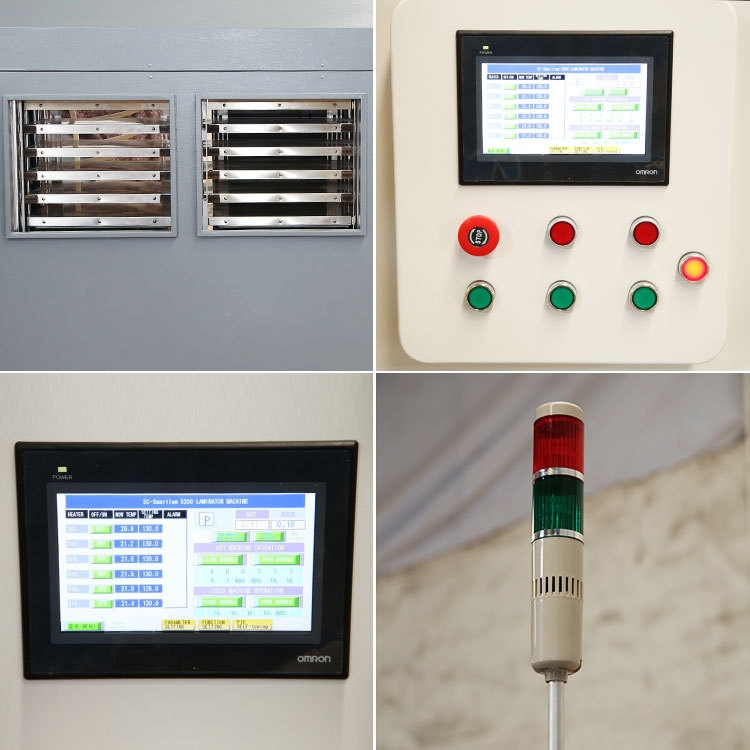

PLC industrial automation control system and touch screen display, imported, easy to operate; With its powerful function, the software can automatically save multiple lamination parameters. Fault alarm and recording functions make the machine more humanized. The heating and cooling towers are made of aluminum alloy to realize rapid heating and cooling without rusting.

Technical parameters:

Cooling method: water cooling

Heating mode: electric heating

Pressure level: heating level 12 / cooling level 5

Pressure accuracy: + / - 0.1 MPa

Temperature accuracy: 0-200 ℃ + / - 1 (℃)

Smoothness of laminate: + / - 0.05mm

Laminate: aluminum alloy

Hydraulic cylinder: single / four

Pressure: 0-16mpa

Laminate size: 420mm * 520mm

Opening: 7

Opening space: 50mm

Laminate thickness: 45mm

Power: 380V, 50 / 60Hz, 26KW

Overall dimension: l2650mm * w1100mm * h1950mm

Weight: 3000 kgs

Output: about 9000 calories / hour
