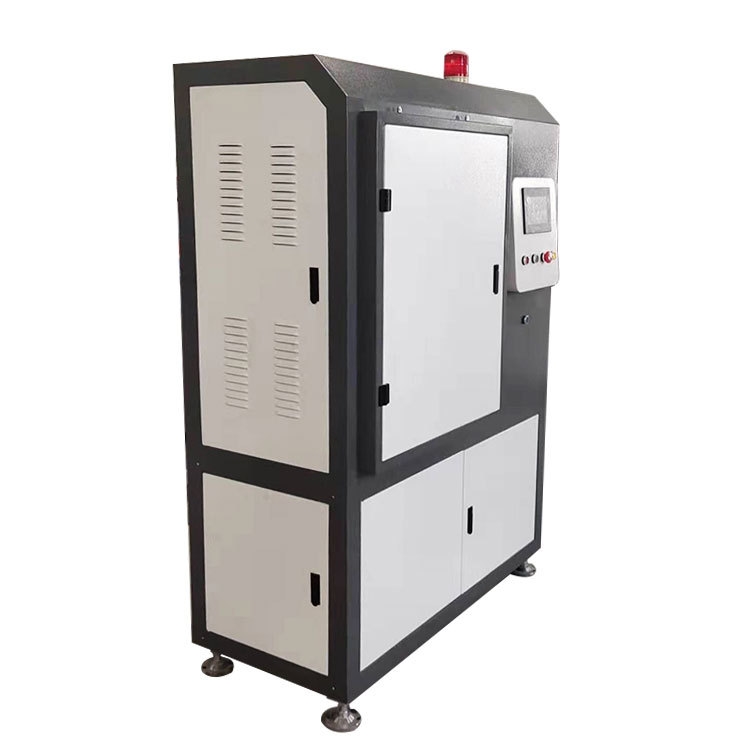

A3Y PVC card automatic laminator

Support to take it from the store. Please contact customer service Wangwang for advice when placing an order~

A3y smart card laminating machine 320mmx500mm (A3)

(PLC control, 1 tower, 3 cooling + 3 Thermal openings)

Function description

Controlled by PLC system to ensure more accurate control and reliable performance in each lamination stage.

This model is specially designed for the quality lamination of various cards, including RFID chip cards.

The large cooling parallel circuit is specially designed to ensure better cooling effect.

technical parameter

1. PVC plate layout: 2 * 5 / 3 * 8

2. Laminated formwork size: 230 × 315mm / 320mmx500mm

3. Sunlight number / distance: 1 tower, 3 hot sunlight, 3 cold sunlight, 50mm

4. Pressure control accuracy: + / - 0.5MPa

5. Working pressure: 0-16mpa (adjustable).

6. Temperature control accuracy: + / - 1 ℃

7. Heating temperature: 200 ℃

8. Power: 20 kW (maximum)

9. Power supply: AC380V 50 / 60Hz 3-phase 4-wire

10. Size: about 800 * 600 * 1600mm

11. Gross weight: About 600kg.
