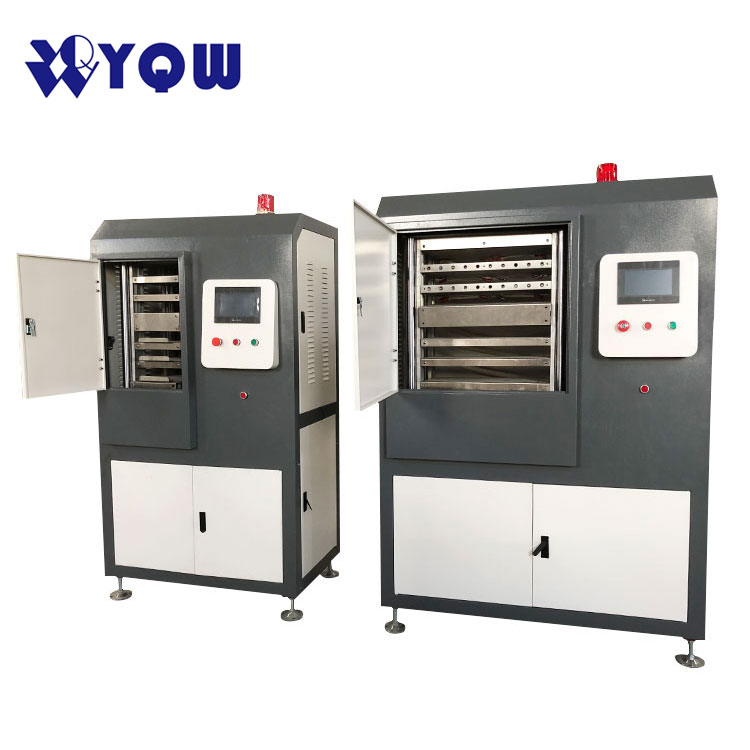

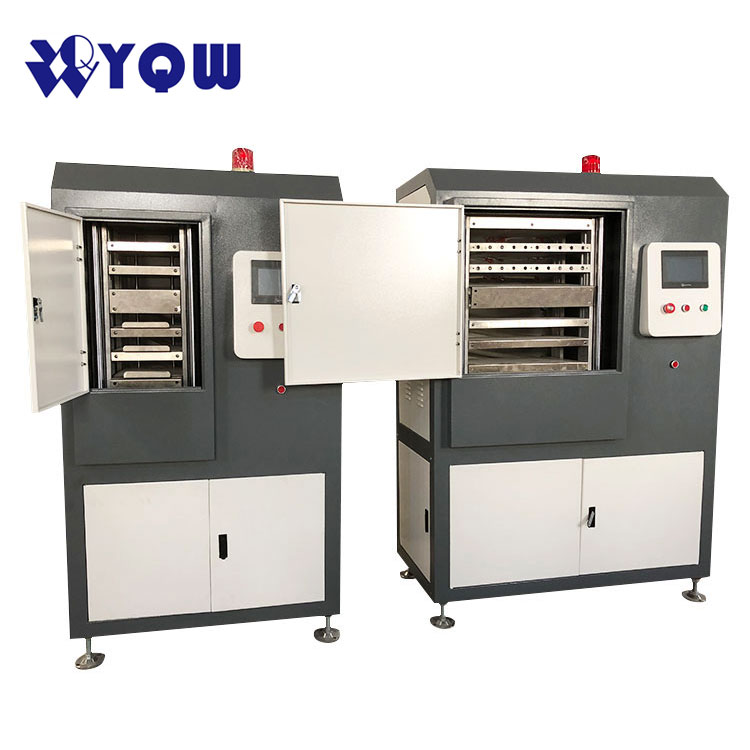

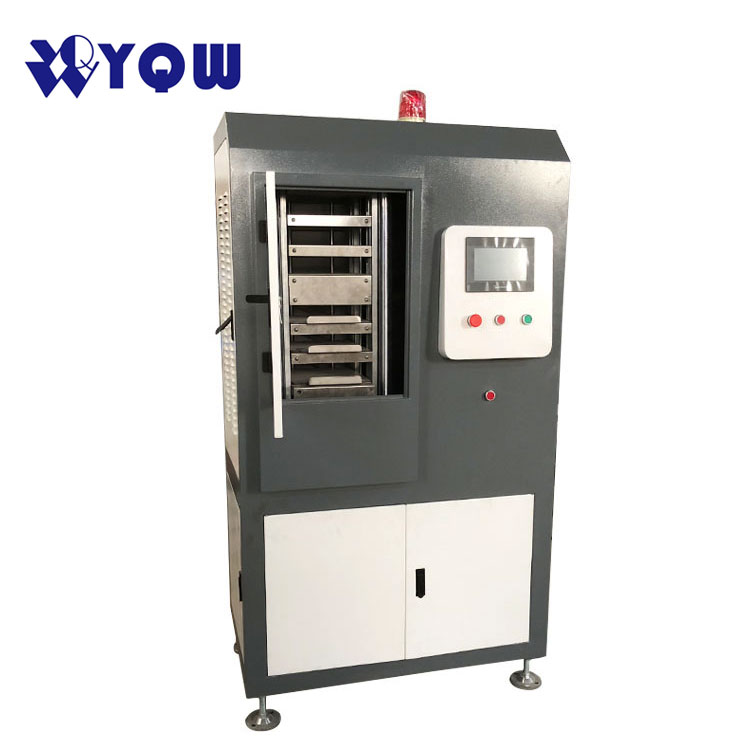

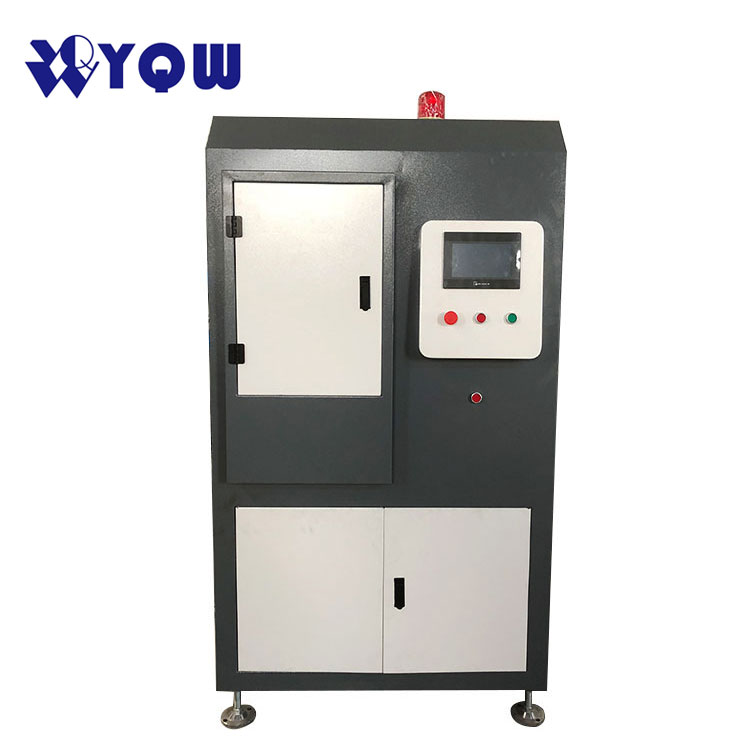

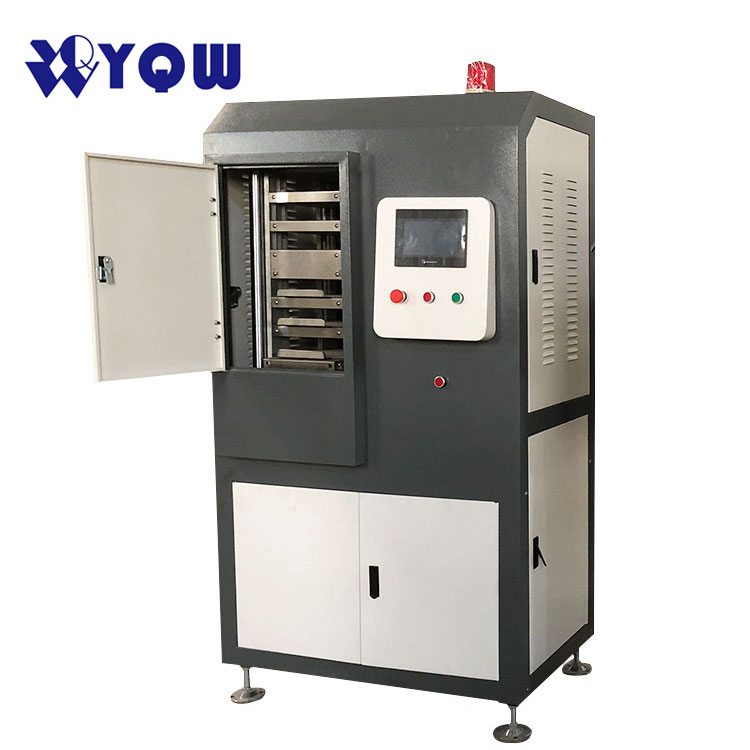

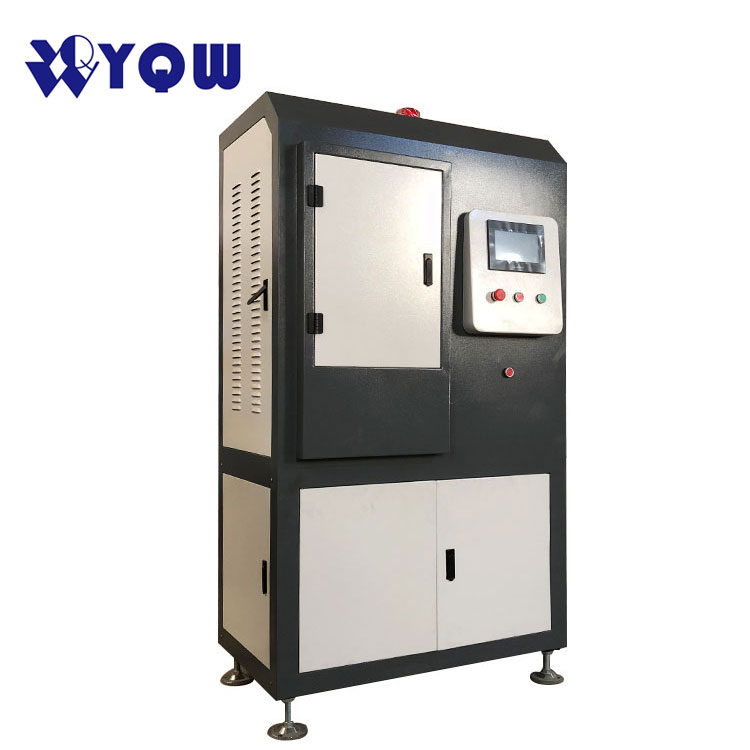

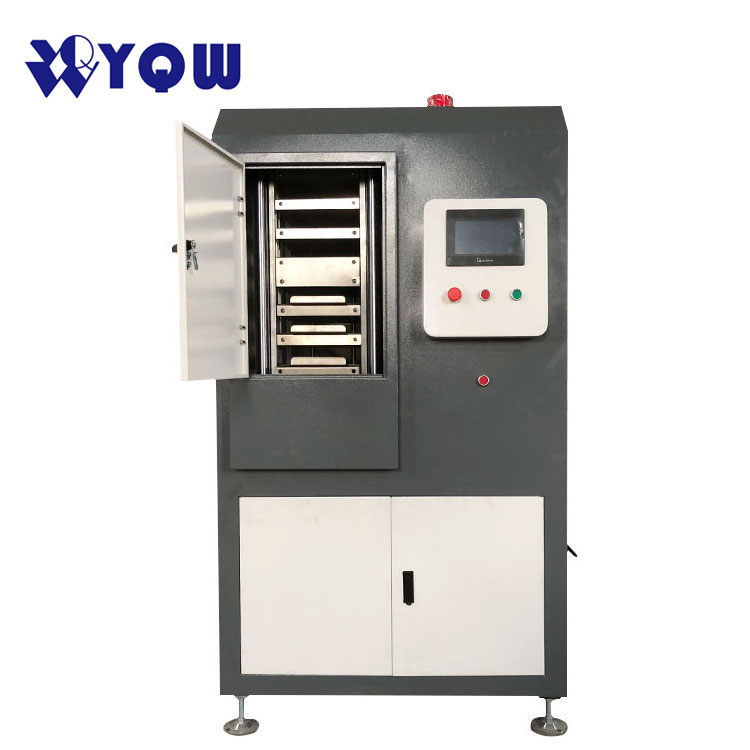

Factory direct selling A4 hydraulic laminator A4 automatic laminator

Support self collection at the store. Please contact the customer service before placing an order~

Function Description:

It is controlled by PLC system to ensure more accurate control of each lamination stage and more reliable performance. This model is specially designed for the quality lamination of various cards, including RFID chip cards. The large cooling parallel circuit is specially designed to ensure better cooling effect.

Technical parameters:

PVC sheet layout: 2 * 5

Size of laminated formwork: 230 * 315mm

Number / distance of sunlight: 1 tower, 3 hot, 3 cold, 40mm

Pressure control accuracy: + / - 0.5MPa

Working pressure: 0-16mpa (adjustable)

Temperature control accuracy: + / - 1 ℃

Heating temperature: ≤ 200 ℃

Power: 7.5 kW (maximum)

Power supply: AC380V 50 / 60Hz 3-phase 4-wire

Size: about 800 * 600 * 1600mm

Gross weight: About 600kg
