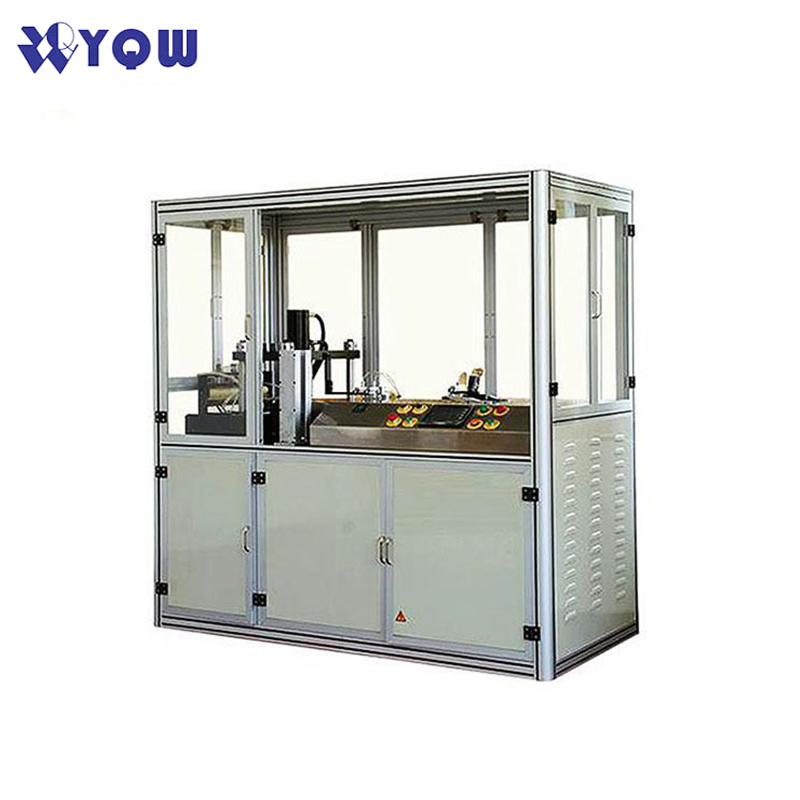

Automatic A3 A4 card punching machine pet card punching machine

Support self collection at the store. Please contact the customer service before placing an order~

Product Description: 3A / 4A / 5aplc automatic card punching machine. This type of card punching machine adopts LCD industrial touch screen man-machine interface. The feeding system adopts Japanese mron servo motor, Japanese high-precision ball screw and plane guide rail, with stable movement and accurate moving distance. Professional high-sensitivity photoelectric identification device is adopted to read the positioning mark, and the positioning is accurate and reliable. Taiwan hydraulic pump, low noise, large flow. Imported seal with long service life. Hydraulic cylinder punch, stable punching and cutting, low noise. The mould is made of imported mould steel. The software has strong functions. 8 cards can set asynchronous distance, and the punching accuracy can still be guaranteed due to material deformation or mechanical wear. There are four kinds of flexible feeding modes, i.e. three punching die and two punching die.

Technical parameters:

Applicable materials: 0.3 ~ 1.0mm PVC or other plastic materials

Punching layout: 3x7,3x8,4x7,4x8,5x5

Number of punches: 3 / 4 / 5

Maximum punching force: 0 ~ 5000 kg adjustable

Cylinder stroke: 18mm

Hydraulic tank capacity: 120 litres

Air source: 0.6 MPa

Power supply: AC380V 50 / 60Hz

Power: 4.5kw

Control mode: PLC control

Output (number of cards flushed): 2000 ~ 20000 cards / hour

Overall dimension: 1850 long × Width 870 × 1850mm high

Weight: about 1000 kg

Gas consumption: 50 L / min
