PVC card punching machine ICID card cutting machine

Support self collection at the store

Please contact customer service before placing an order~

Product features:

1. Hydraulic power punching mode is adopted, with large impulse and less faults.

2. Design center line positioning, positioning multiple punching at one time.

3. Auxiliary photoelectric eye center positioning, accurate positioning and fast speed.

4. Punching and cutting machine.

5. It is convenient to replace the mold.

6. It is convenient to push and charge materials.

7. Low maintenance cost.

Application scope:

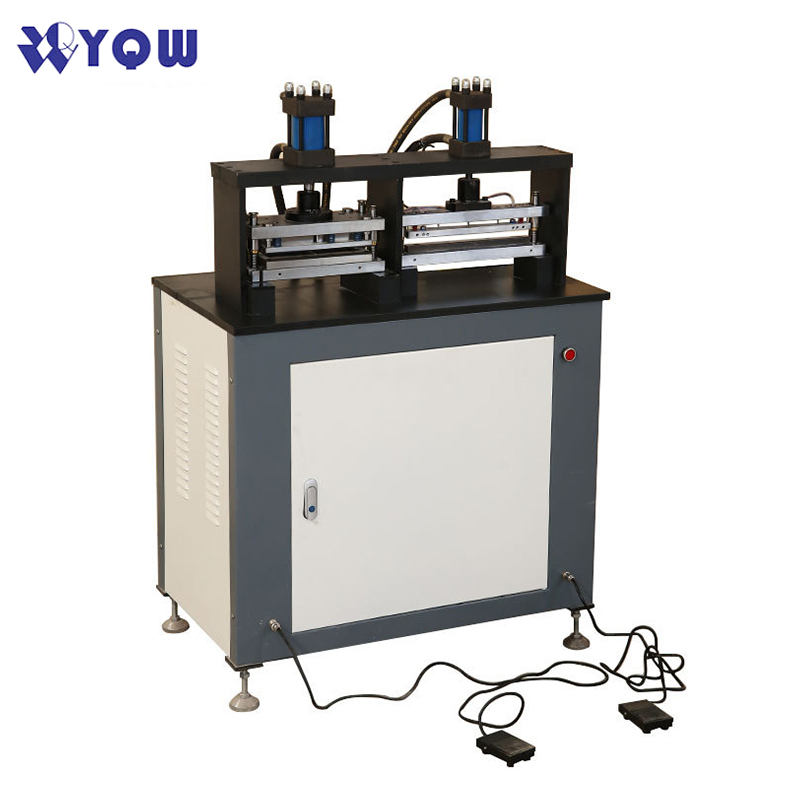

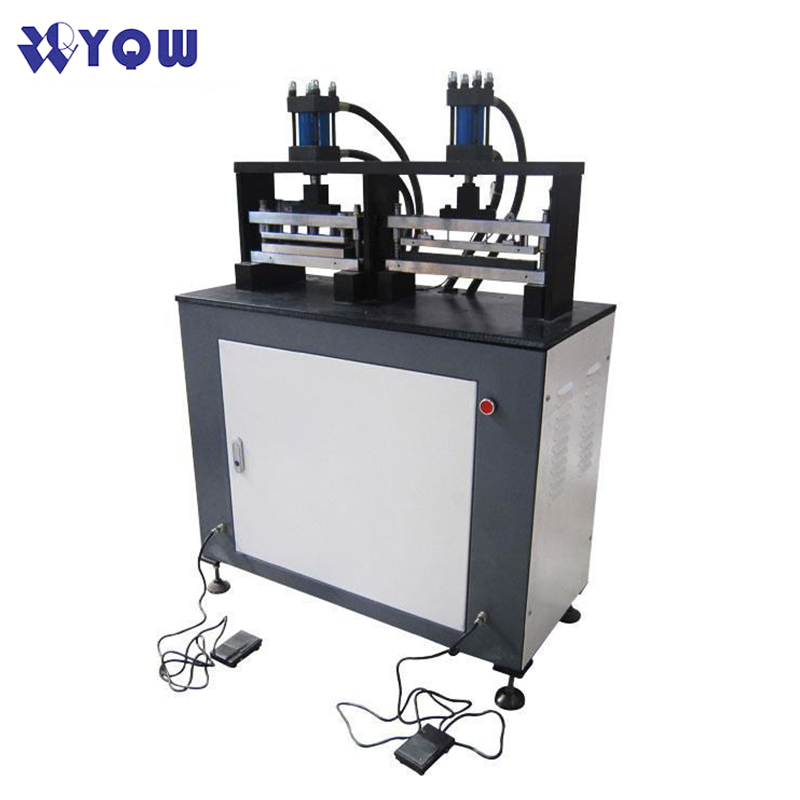

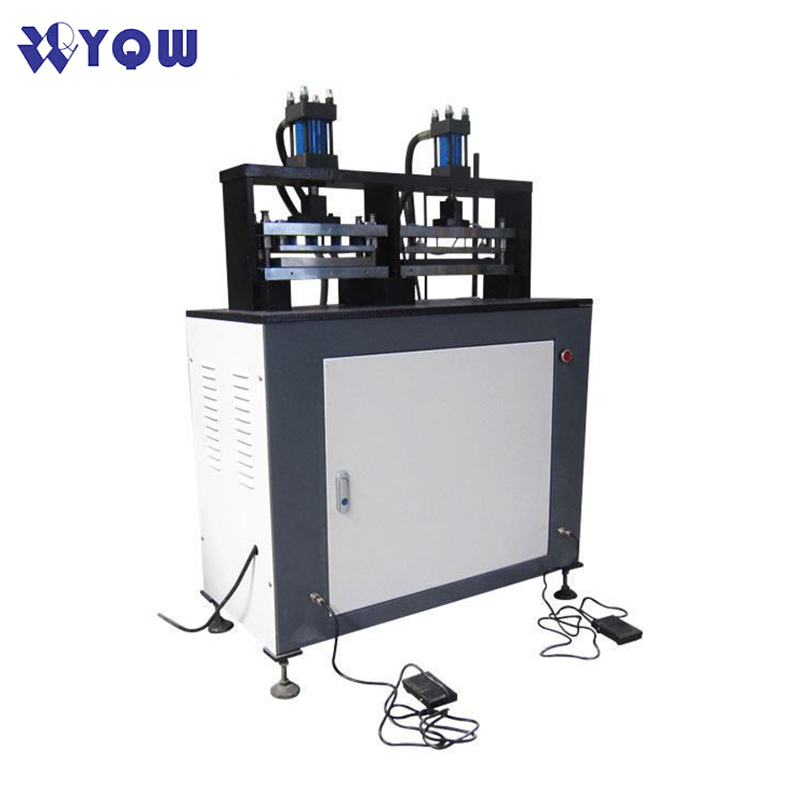

Hs-2b double die card punching machine adopts hydraulic power punching mode, and auxiliary photoelectric eye center positioning is adopted for positioning, with accurate positioning and high speed. Equipped with high-quality imported molds, it is convenient to replace molds, and the whole machine is safe and reliable. It is suitable for punching A4 format PVC, ABS and other materials. The punching effect can be comparable to that of automatic high-speed multi die punching. There is no need to cut, and the punching can be carried out directly after punching.

Technical parameters:

Product model: hs-2b double die card punching machine

Punch card size: international credit card standard size (85.7) × 54mm ）

Clamping size: 210 mm × 297 mm

Punching thickness: 0.3 mm-1.2mm

Punching mode: Hydraulic

Card punching action: continuous

Voltage: 220V

Power supply: 220V AC 50Hz

Power: 2.2kw

Working efficiency: 3000 cards / hour

Overall dimension: 850 × four hundred and ten × 1150mm

Gross weight: 200kg
