Factory direct selling a4pvc card automatic card cutter

Support self collection at the store. Please contact the customer service before placing an order~

Product Description:

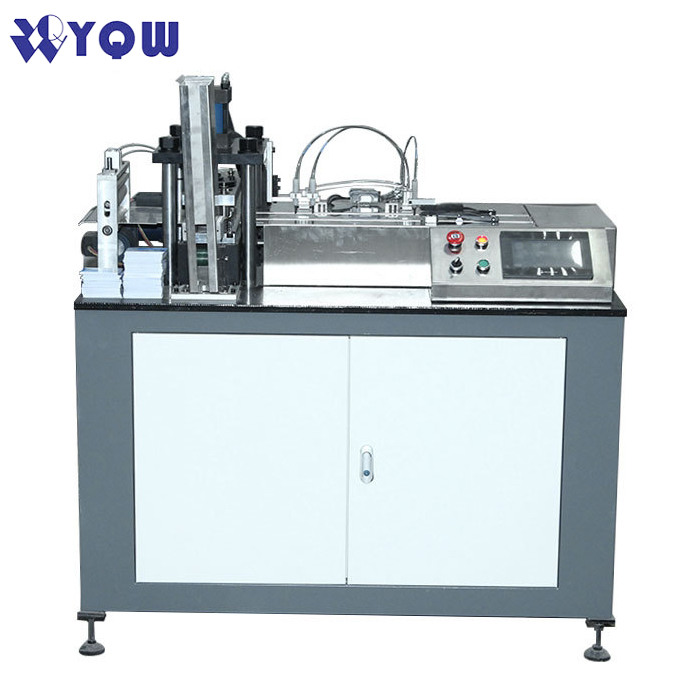

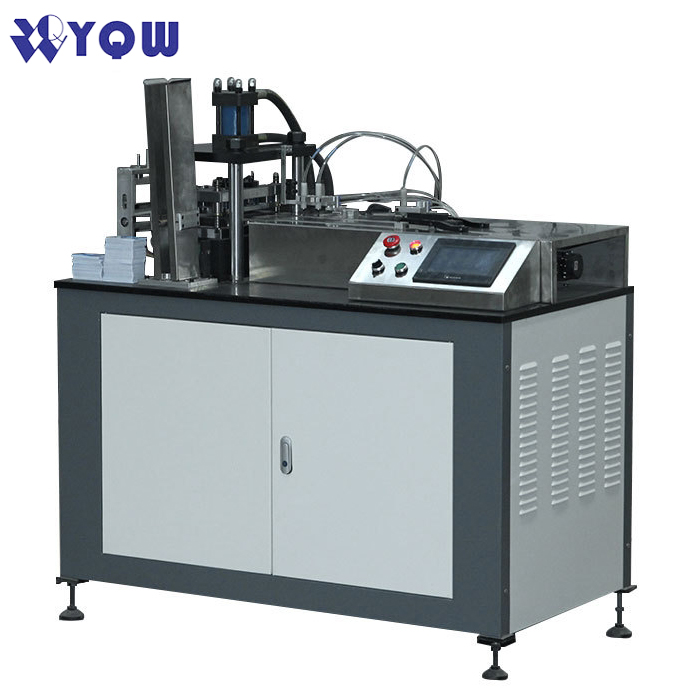

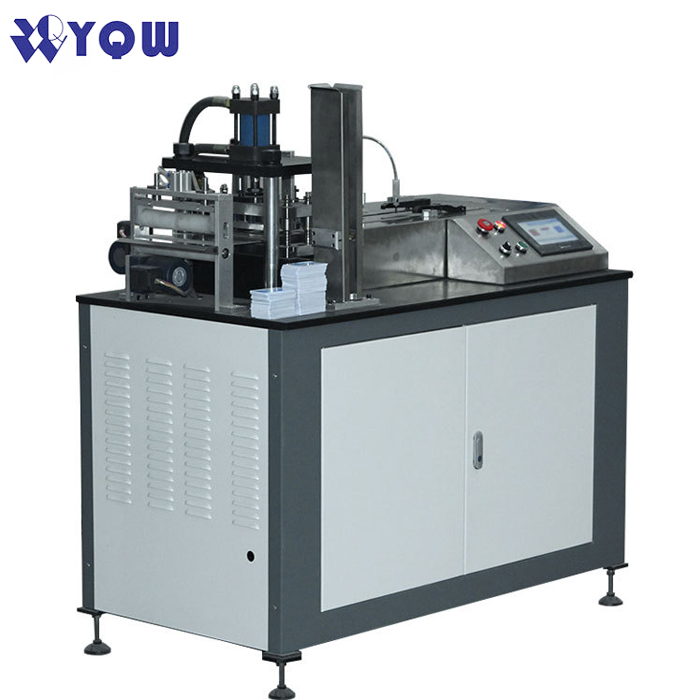

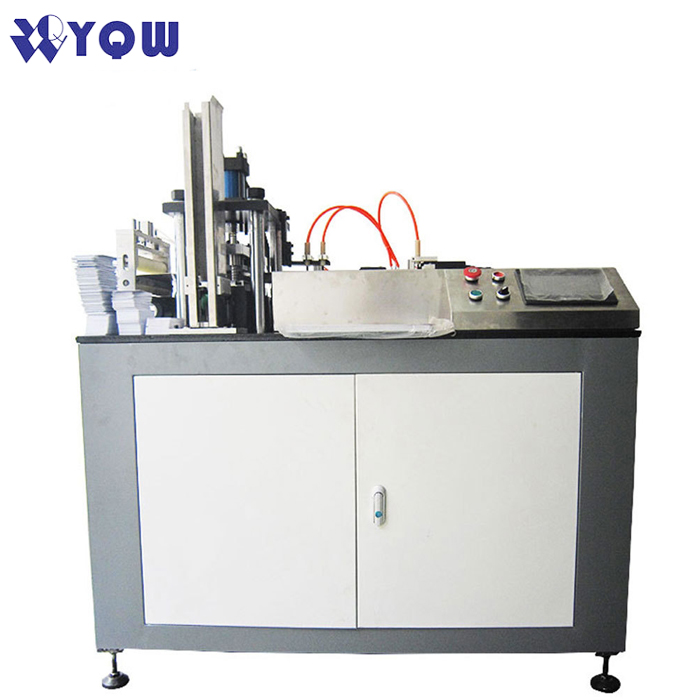

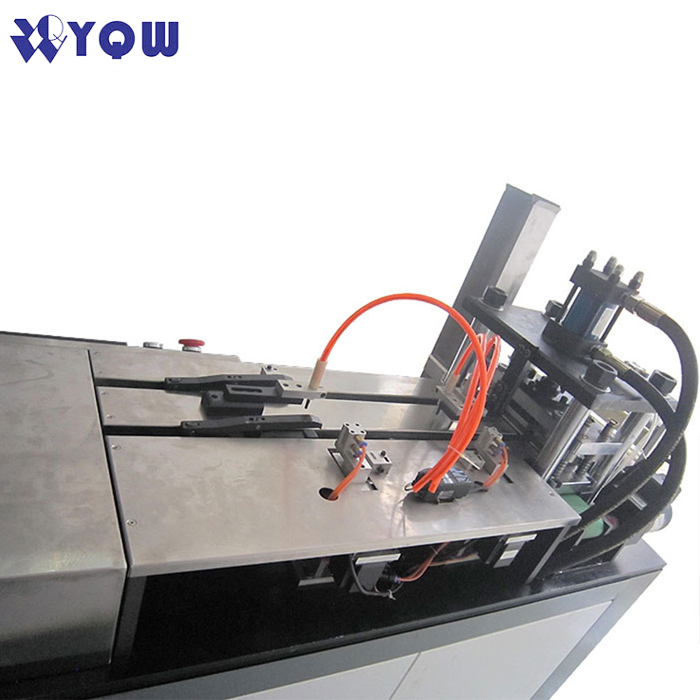

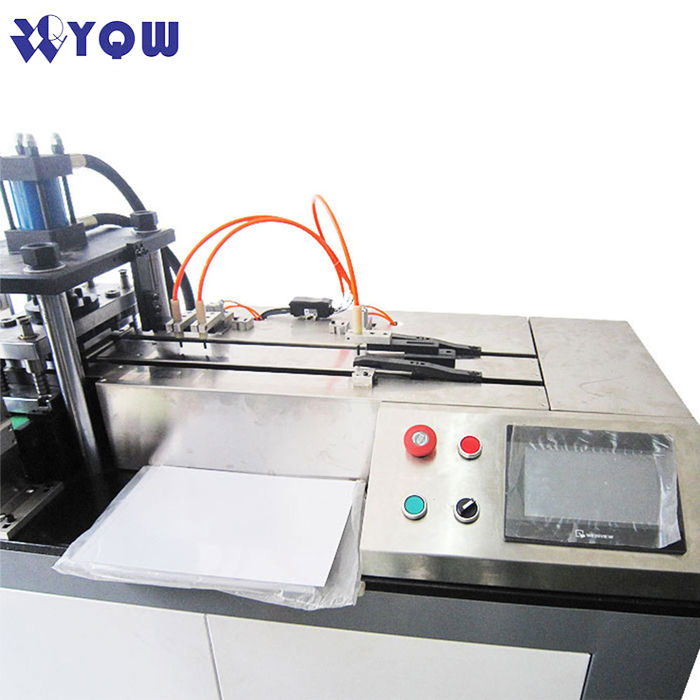

2aplc high-speed automatic card punching machine adopts PLC control man-machine interface. The feeding system adopts imported servo motor, imported high-precision ball screw and linear guide rail, with stable movement and accurate moving distance. Make the positioning accuracy less than 0.10mm. Professional high-sensitivity photoelectric identification device is adopted to read the positioning mark, and the positioning is accurate and reliable. Imported hydraulic pump, low noise and large flow. Hydraulic cylinder, stable punching and cutting, low noise. The mould is made of imported mould steel. The software has strong functions, and the punching accuracy can still be guaranteed due to material deformation or mechanical wear. The punching speed is 30% higher than that of similar products. The feeding punching mode is double die, which is suitable for small and medium-sized personality card factories.

Product advantages:

1. PLC control man-machine interface.

2. The photoelectric identification device reads the positioning mark, and the positioning is accurate and reliable.

3. The die is made of imported die steel, and the effect of punching card edge is good.

Technical parameters:

Applicable materials: 0.3 ~ 1.0mm PVC or other plastic materials

Punching layout: 2 × 5(210mm*297mm)

Number of punches: 2

Maximum punching force: 0 ~ 5000 kg adjustable

Cylinder stroke: 18mm

Hydraulic tank capacity: 120 litres

Air source: 0.6 MPa

Air consumption: 100 L / min

Power supply: AC380V 50 / 60Hz

Power: 4.5kw

Control mode: PLC control

Output (number of cards flushed): 5000 cards / hour

Overall dimension: 1350 long × Width 600 × 1300mm high
