Semi automatic die cutting machine for PVC card and smart card

Support self collection at the store. Please contact the customer service before placing an order~

Product Description:

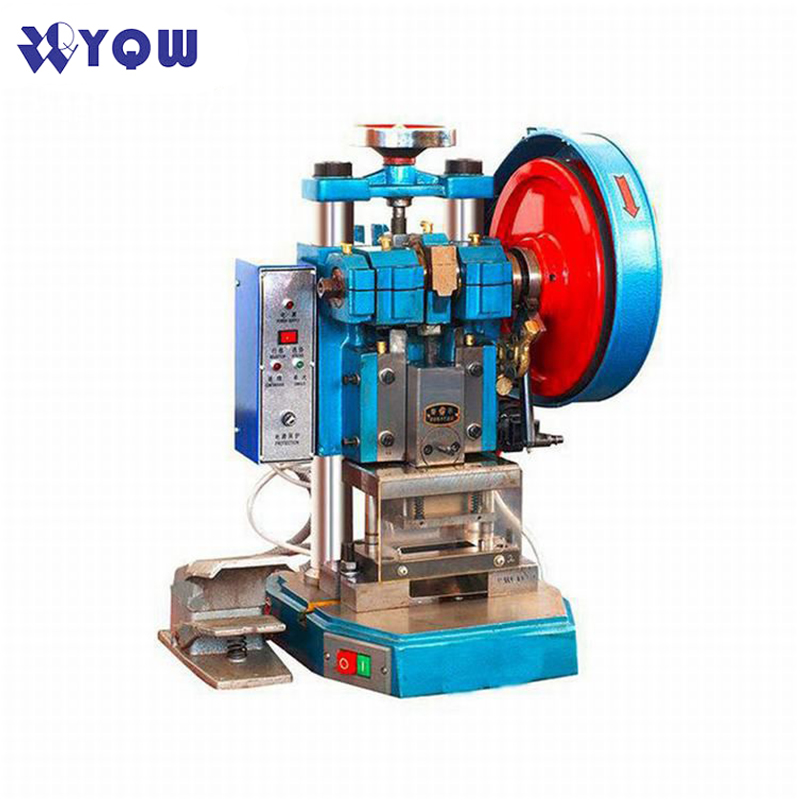

D5-1 electric single card punching machine is refitted and combined with a press. This punching machine is manufactured with advanced technology, high-quality materials, high-precision special equipment and tooling equipment. It has the characteristics of good rigidity, high precision, light structure, superior performance, stable and reliable quality, safe and convenient operation, etc. Its driving mode is mainly to use the motor to drive the flywheel. Through the action of the clutch, the machine can push up and down to punch and cut out the card. The edge of the finished card cutting product is smooth, the force is large, and the punching speed is fast. The machine is advanced in design. It adopts automatic positioning punching and accurate positioning. It is a necessary equipment for die cutting PVC card, and its mold can be replaced according to the actual needs.

Technical parameters:

Model: d5-1

Punch size: 85.7 × 54mm

Feed size: 105mm

Punching thickness: 0.01-1.5mm

Host power: 370W

Voltage: 220VAC 50 / 60Hz

Overall dimension: 640 × four hundred and fifty × 700mm

Card punching speed: ≥ 1200 pieces / hour
